GM-Trays | Tray Stacker Trolley

Lifting trolleys and Stackers

GM-Trays – Handling Stacker for Trays weighing from 80 to 600 kg
The GM-Trays range of handling trolleys is an easy-to-use mobile solution that relieves the burden of lifting Trays in all environments (food processing, Click & Collect pick-up locations, sorting centres, etc.).
hese devices can be adapted to all Tray models thanks to a made-to-measure fork design adapted to the needs of each customer. Lightweight, equipped with an electric lift, the GM-Trays eliminate physical strain and improve productivity!

Download the documentation

Handling of Trays up to 600 kg
Design of custom-made forks for all Trays
Available in steel or stainless steel

See technical details

Make a quote request Contact us

Make a quote request

Technical details

Download the documentation

GM-trays is a range of trolleys that eliminates the need for handling trays, whatever their shape, in any environment: industrial, food processing, ATEX… It is available in steel or stainless steel.

In order to ensure that we can respond to all issues, the forks of these handling stackers are designed on request and quickly for each customer.

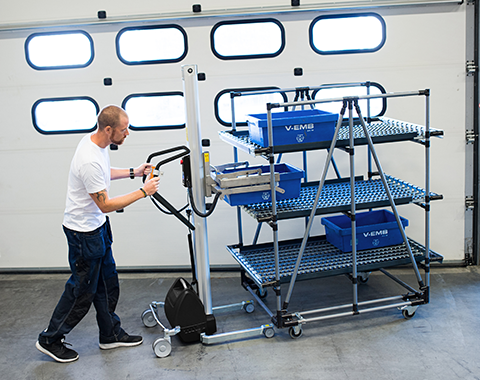

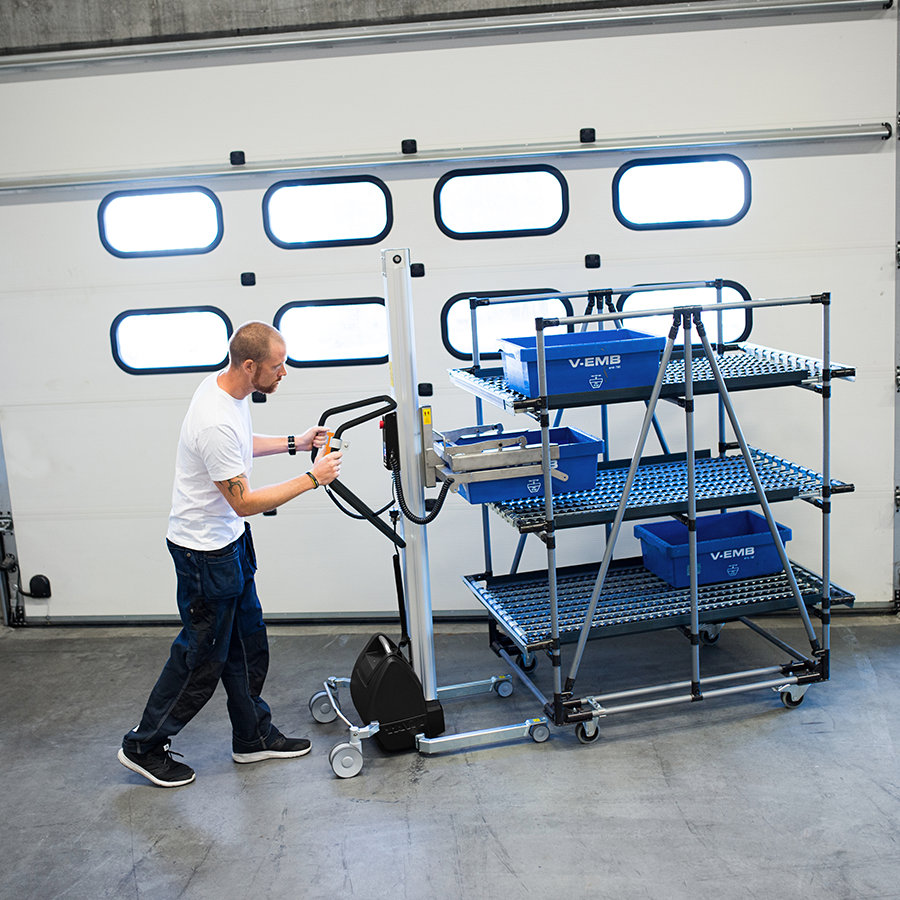

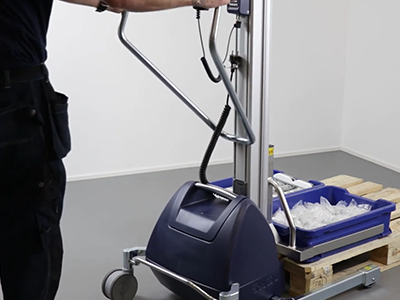

The GM-trays is very easy to use: the operator moves the handling stacker in order to load trays. The electric Tray lifting system allows the loads to be lifted to the desired height. The lightweight design of the GM-trays facilitates fast and effortless movement.

The trays can therefore be stacked or filled and emptied ergonomically at the desired height. Tray lifting heights can be up to 2000 mm and can weigh up to 600 kg in the higher performance versions.

Numerous options complete this range: automatic levelling of the trays when stacking or unstacking, LCD screen for setting the desired height and lifting speed, maximum height extension, etc.

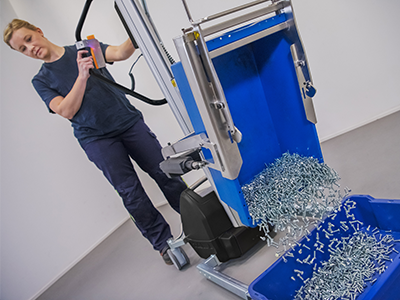

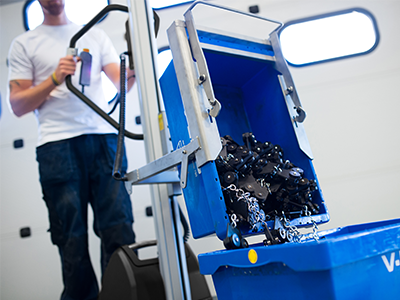

Finally, these handling stackers can be equipped with the Tray turner and Tray tilter options in order to relieve all types of operations.

MWA (kg)
80
100
150
200
300
300
500
600

Variable Geometry – Min-max Spacing (mm)
No
No
No
No
No
Yes 400 – 800
No
Yes 500 – 1000

Available in stainless steel?
Yes
Yes
Yes
Yes
Yes
No
Yes
No

Stacker dimensions – X1 x Y1 x Z1 (mm)
951 x 570 x 2000
900 x 592 x 2050
1044 x 570 x 2000
980 x 592 x 2050
1144 x 570 x 2000
1065 x 585 x 2460
1273 x 570 x 2000
1092 x 740 x 2510

Max lifting height – Z2 (mm)
1600
1520
1600
1520
1600
2000
1600
2000

Dimensions of stringers – LL x Lh (mm)
525 x 84
600 x 80
625 x 90
590 x 80
725 x 90
686 x 80
725 x 90
730 x 80

Wheel diameter front-back (mm)
80 – 100
82 – 125
82 – 125
82 – 125
82 – 125
80 – 125
82 – 160
80 – 125

Weight (kg)
45
80
105
87
110
78
175
205

Feeding
24V
12V
24V
12V
24V
12V
24V
12V

Lifting speed
190
100
190
100
190
165
100
165

Type of control
Wired
Fixed
Wired
Fixed
Wired
Fixed
Wired
Fixed

Type of batteries
2x 24V / 7.5A/h
2x 12V / 10A/h
2x 24V / 20A/h
2x 12V / 20A/h
2x 24V / 20A/h
1x 12V / 100A/h
2x 24V / 40A/h
1x 12V / 100A/h

Ascending autonomy
100 cycles
100 cycles
100 cycles
100 cycles
100 cycles
100 cycles
100 cycles
100 cycles

Electrical safety
Isolator and E-stop
Isolator and Key
Isolator and Emergency Shutdown
Isolator and Key
Isolator and Emergency Shutdown
Isolator and Emergency Shutdown
Isolator and Emergency Shutdown
Isolator and Emergency Shutdown

Protection / Certification
IP54
IP20
IP54
IP20
IP54
–
IP54
–

Manual or Electric tilting available?
Option
Option
Option
Option
Option
Option
Option
Option

180° turning available?
Option
No
Option
No
Option
No
Option
No

Gencode Steel
GMBac80
GMBac100
GMBac150
GMBac200
GMBac300
GMBac300GV
GMBac500
GMBac600

Gencode Stainless steel
GMBac80i
GMBac100i
GMBac150i
GMBac200i
GMBac300i
–
GMBac500i
–
